Products Series

Seat Belt Buckle (CA-0600 Series)

Product Information

✔ Buckle size in 60mm X 62mm. ✔ Webbing hole diameter : 52mm ✔ Material : S50C + Aluminum + Stainless steel

Available Model Colors

Available Match Colors

Inquiry

Available Model

CA-0600A

CA-0630B

CA-0630D

CA-0630C

CA-0630A

CA-0630D

CA-0630C

汽車安全扣_Seat_Belt_Buckles_CA-0600A / CA-0600E.png

CA-0600A / CA-0630A

Available Match

CW-6001

CW-6111

CW-6221(細)

CW-6222(細)

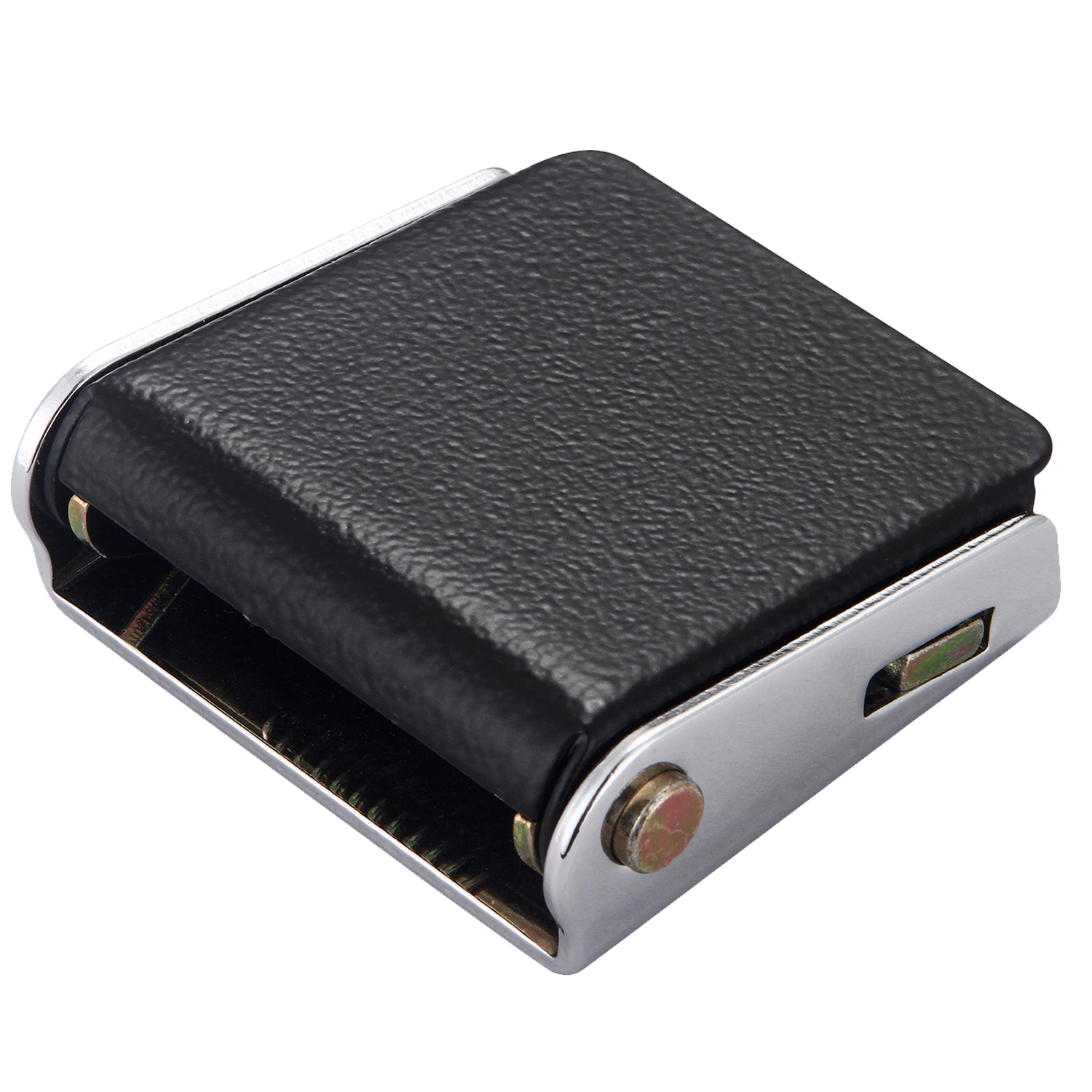

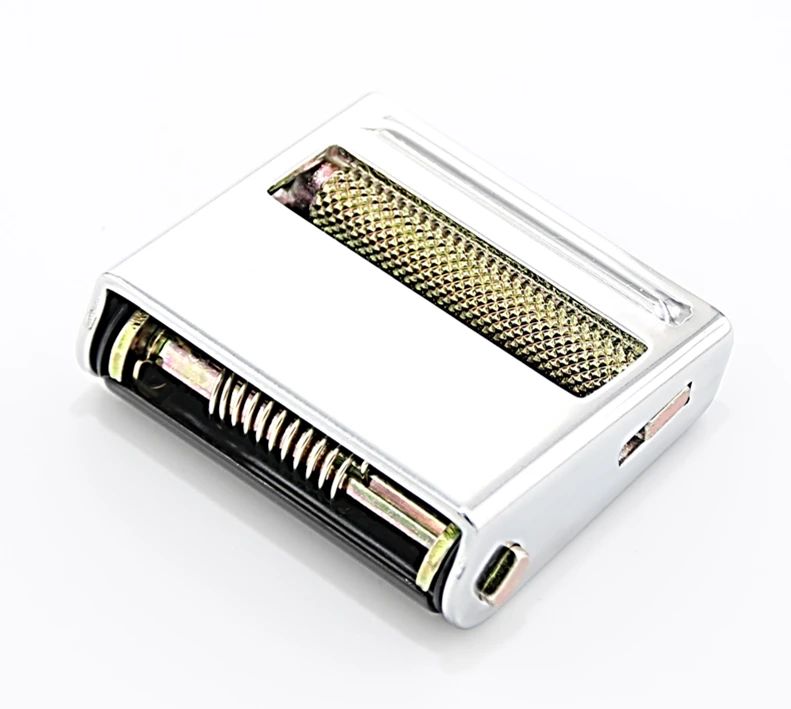

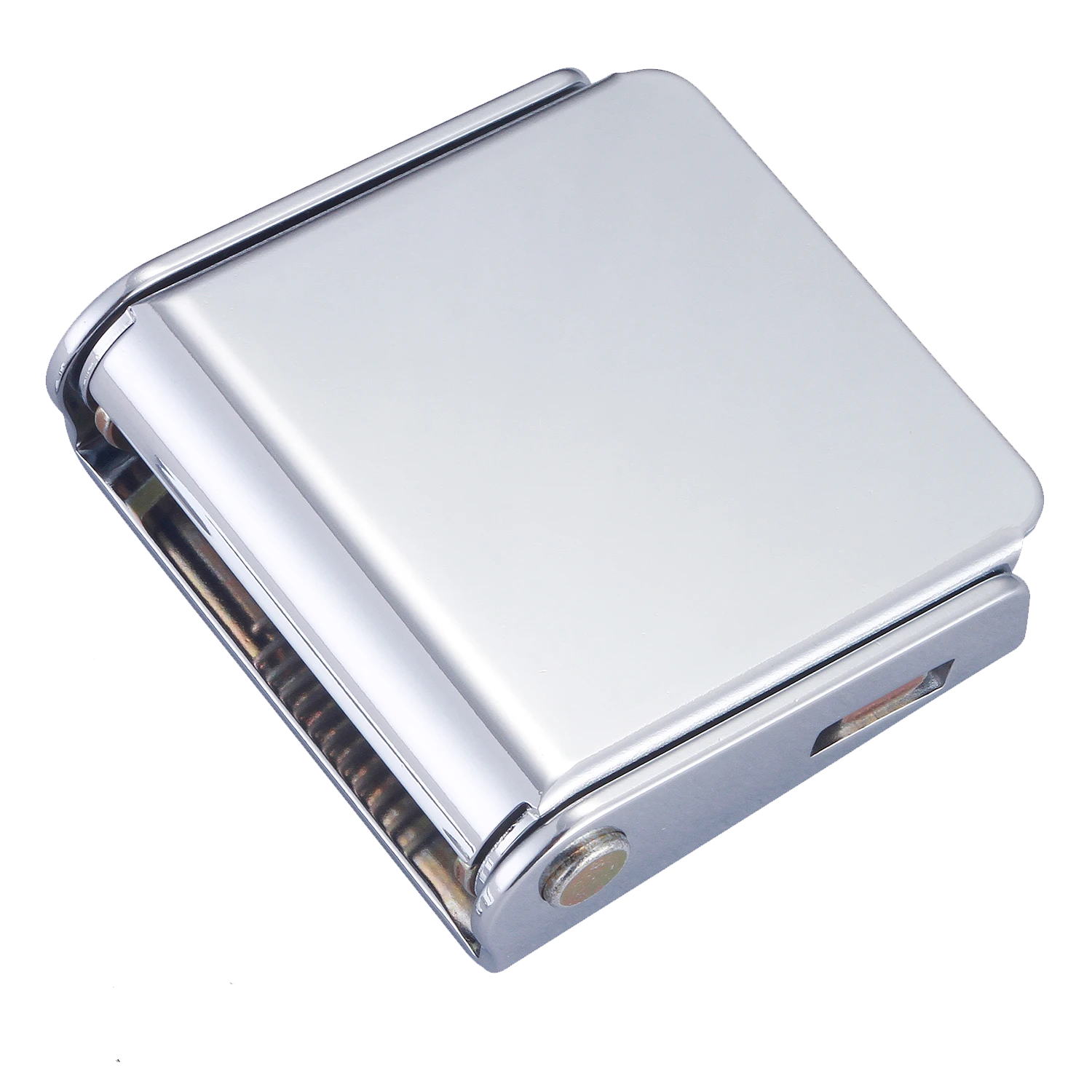

About CA-0600 Seat Belt Buckle

The safety buckle of the CA-0600 series is an all-metal flip-top design to maintain simple safety and industrial style.

It can be widely used in many occasions that require buckles.

● amusement market

● Buckle market

● Automotive market

● Use of fasteners with required strength

Female-Buckle Specification

CA-0600A

✔Buckle Dimension：60mm X 62mm.
✔Webbing hole diameter：52mm
✔Material：S50C

CA-0600B

✔Buckle Dimension：60mm X 62mm.
✔Webbing hole diameter：52mm
✔Material：S50C + Aluminum

CA-0600C

✔Buckle Dimension：60mm X 62mm.
✔Webbing hole diameter：52mm
✔Material：S50C + Aluminum

CA-0600D

✔Buckle Dimension：60mm X 62mm.
✔Webbing hole diameter：52mm
✔Material：S50C + Aluminum

CA-0600E

✔Buckle Dimension：60mm X 62mm.
✔Webbing hole diameter：52mm
✔Material：S50C + Aluminum

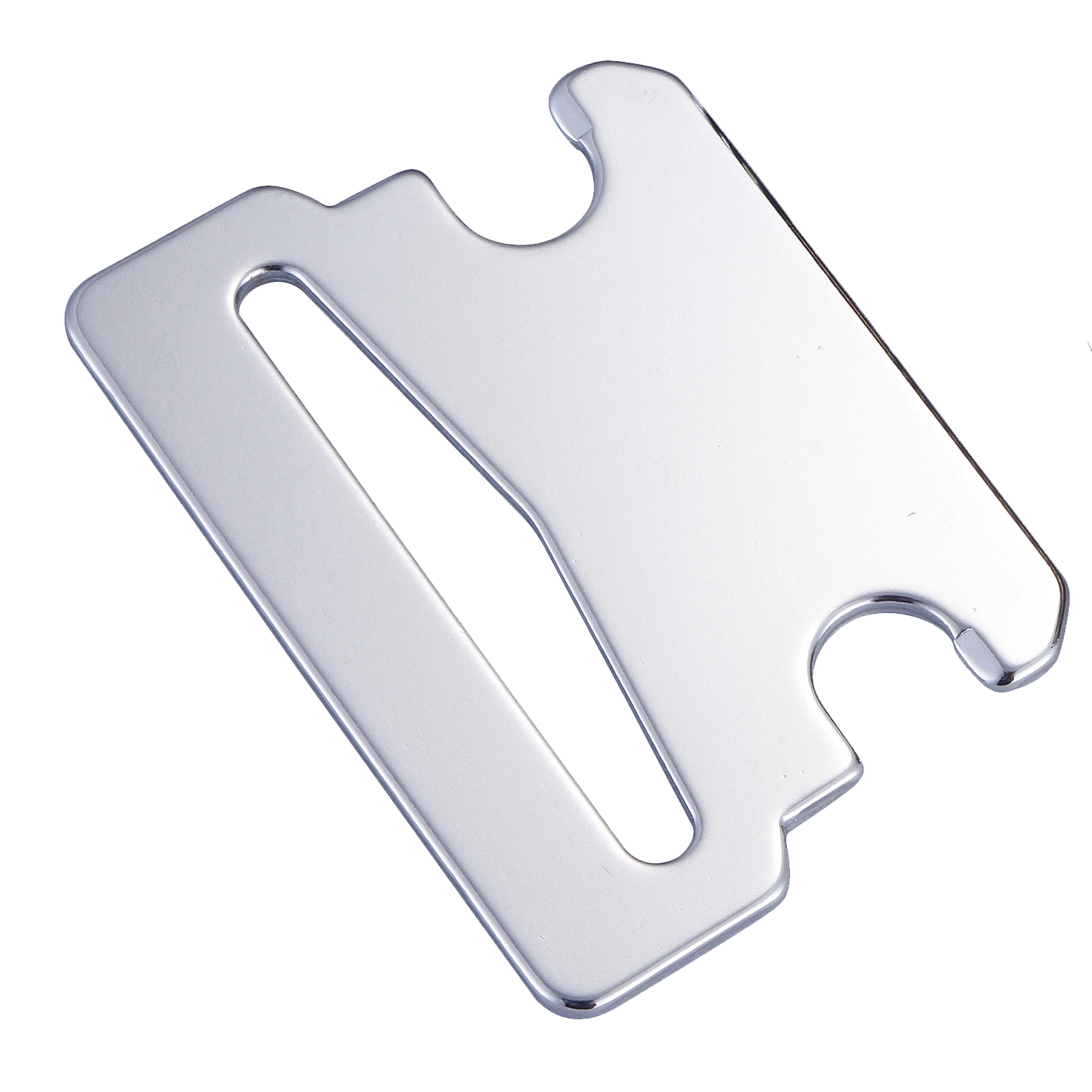

Male-Buckle Specification

CW-6001

✔Dimension : 64.8mm x 46.1mm
✔Material : S50C
✔Webbing hole diameter : 52mm

CW-6111

✔Dimension : 78.4mm x 64.7mm
✔Material : S50C + Plastic
✔Webbing hole diameter : 50.8mm

CW-6211(Embossed rod diameter:7.2mm)
CW-6221(Embossed rod diameter:6.8mm)

✔Dimension : 60mm x 62mm
✔Material : S50C + Plastic
✔Webbing hole diameter : 50.8mm
