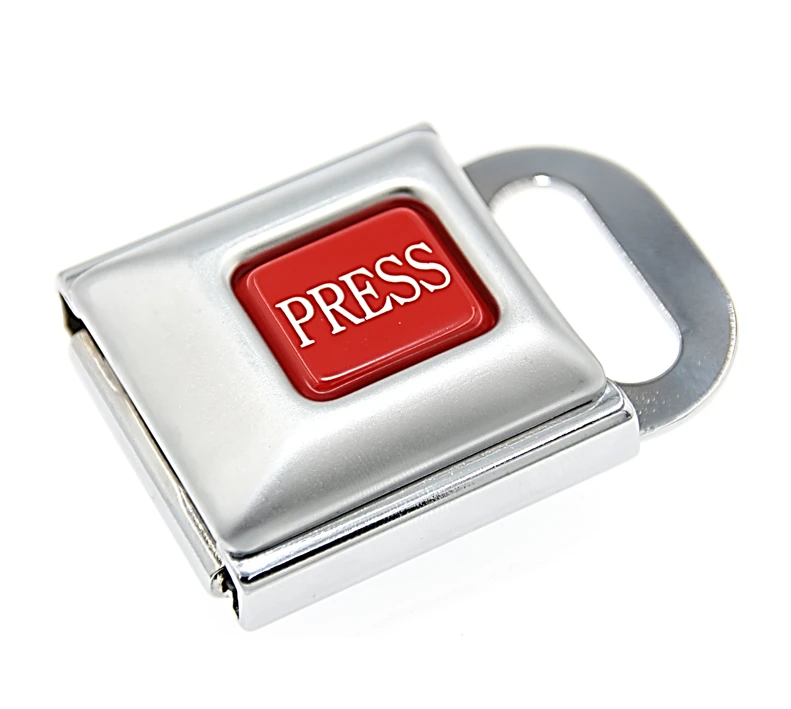

Seat Belt Buckle (CA-0303 Series)

Seat Belt Buckle (CA-0303 Series)
Product Information
✔ Buckle size in 68mm X 46.7mm. ✔ Webbing hole diameter : 30mm ✔ Material : S50C
Available Model Colors
Available Match Colors
Available Model
CA-0303A
CA-0303B
CA-0303C
Buckle Size comparison.png
Buckle Size comparison
Available Match
CW-3001
CW-3002
CW-3003
CW-3004
CW-3005A
CW-3007
CW-3008
CW-3111
CW-3211 CW-3221
CW-3212 CW-3222

About CA-0303 Seat Belt Buckle


The buckle of the CA-03 series is designed to be as simple as possible to keep it secure and comfortable.

It can be widely used in many occasions that require buckle.

● Assistive devices market

● Automotive market

● Use of fasteners with required strength



Female-Buckle Specification

  CA-0303A

  ✔Buckle Dimension: 68mm X 46.7mm.
  ✔Webbing hole diameter : 30mm
  ✔Material : S50C



  CA-0303B

  ✔Buckle Dimension: 68mm X 46.7mm.
  ✔Webbing hole diameter : 30mm
  ✔Material : S50C



  CA-0303C

  ✔Buckle Dimension: 68mm X 46.7mm.
  ✔Webbing hole diameter : 30mm
  ✔Material : S50C



Male-Buckle Specification

  CW-3001

  Dimension : 74mm x 68.5mm
 ✔Material : S50C + PU
 ✔Webbing hole diameter : 50mm




  CW-3002

  Dimension : 49.3mm x 47mm
 ✔Material : S50C
 ✔Webbing hole diameter : 30mm




  CW-3003


Dimension : 49.5mm x 46.1mm
 ✔Material : S50C
 ✔Webbing hole diameter : 25.6mm




  CW-3004


  Dimension : 49.2mm x 41mm
 ✔Material : S50C
 ✔Webbing hole diameter : 30mm




  CW-3005A

  Dimension : 49.3mm x 47mm
 ✔Material : S50C + Plastic
 ✔Webbing hole diameter : 22.7mm




  CW-3007

  Dimension : 78mm x 78.6mm
 ✔Material : S50C + Plastic
 ✔Webbing hole diameter : 61mm




  CW-3008

  Dimension : 46mm x 53.4mm
 ✔Material : S50C + PU
 ✔Webbing hole diameter : 24.7mm



  CW-3111

  Dimension : 70mm x 43.3mm
 ✔Material : S50C + Plastic
 ✔Webbing hole diameter : 51mm




  CW-3211(Embossed rod diameter:7.2mm)
  CW-3221 (Embossed rod diameter:6.8mm)


  Dimension : 70mm x 61.8mm
 ✔Material : S50C + Plastic

 ✔Webbing hole diameter : 51mm



  CW-3212(Embossed rod diameter:7.2mm)
  CW-3222 (Embossed rod diameter:6.8mm)


  Dimension : 70mm x 61.8mm
 ✔Material : S50C + Plastic
 ✔Webbing hole diameter : 51mm
